Godfrey: Drift Model Says MH370 Might Have Crashed Further North on Arc

Simulated drift of the flaperon after 389 days from 22S latitude (Godfrey).

Introduction

Fellow MH370 Independent Group (IG) member Richard Godfrey has completed a new drift analysis that suggests that MH370 might have crashed further north on the 7th arc than was previously searched. Richard concludes that the recovered aircraft debris from the beaches of East Africa could have originated from potential impact sites as far north as 20.5°S latitude. He is recommending that a new subsea search cover the part of the 7th arc between 25°S and 20°S latitudes based on his new drift analysis. As further justification for a new search to the north, he also cites the reconstructed flight path over Cocos Island ending at 22°S that we discussed in the previous post.

Discussion

The new drift analysis highlights the timing and location of the discovery of four parts that were found with barnacles still attached. These pieces are particularly important because the presence of marine life on a part suggests that the timing of the discovery was close in time to the arrival of the part.  Any marine life that is attached to a beached part either falls off or is picked off due to decomposition and scavenging, so the presence of barnacles is a good indicator that the part was recently beached.

The four parts found with barnacles that were considered in the drift analysis were:

  • The flaperon found on Reunion Island after drifting about 508 days
  • The fragment of the engine cowling (“Roy”) found in Mossel Bay, South Africa, after drifting about 655 days
  • The fragment of the cabin divider found on Rodrigues after drifting about 753 days
  • The outboard flap found in Pemba, Tanzania, after drifting about 835 days

The drift analysis uses the database of buoy positions that are tracked as part of the Global Drift Program (GDP). The data sets from 96 buoys were used to build a model of the Indian Ocean with a spatial resolution of 1° of latitude and longitude, and 1 day of temporal resolution. Both drogued and undrogued buoys were considered. For the flaperon, the drift model also includes an additional 10 cm/s and 1.5% of wind, at an angle to the left of wind at 16°, which were the values that were experimentally measured by CSIRO using a replica of the flaperon.

The figure below (adapted from Richard’s paper) shows the expected time for the flaperon to reach the longitude of Reunion Island for a range of impact latitudes along the 7th arc. Also shown by the shaded area is the actual time (+/- 50 days) for the flaperon to reach Reunion Island. The model predicts that starting latitudes are far north as 19S are possible.

Number of days for the flaperon to reach the longitude of Reunion Island for a range of impact latitudes on the 7th arc. The actual time (+/- 50 days) is shaded. (Adapted from Godfrey)

Richard also considered when debris is predicted to arrive on the shores of the African mainland for various starting latitudes along the 7th arc. The results are shown in the figure below. Also shown by the shaded area is the range of times corresponding to the actual arrival of the engine cowling fragment and the outboard flap, again bounded by +/- 50 days. The model again predicts that starting latitudes are far north as 19S are possible.

Number of days for debris to reach African mainland for a range of impact latitudes on the 7th arc. The actual time (+/- 50 days) is shaded. (Adapted from Godfrey)

Conclusions

The new paper on drift modeling of MH370 debris is interesting in that it gives special attention to those parts found with barnacles still attached, which allows us to estimate the arrival time with better accuracy than for other parts found with little or no marine life.  The paper provides justification for continuing the search further north along on the 7th arc.

Readers interested in learning more about the methodology and the results of the drift model should consult the full paper.

165 Responses to “Godfrey: Drift Model Says MH370 Might Have Crashed Further North on Arc”

  1. flatpack says:

    @Don Thompson

    Re your last comment on the previous thread

    You noted “the time of the final SATCOM exchange indicates that the aircraft flew to its expected endurance”

    I think someone (probably Dr B) knocked up a flight plan, using only one engine, flying slower than normal that met the expected endurance.

    I have suggested previously that the flight was intentionally made to look as if it might be ‘crippled’:-

    ‘My overarching guess is that the overall ‘plight plan’ was to simulate a wounded bird. Thus any primary radar operater that actually noticed would perceive an unresponsive aircraft possibly heading towards the next available diversion airstrip.

    Each national operator would only see part of the overall picture. Their individual segment would make sense and be essentially unthreatening. Only in hindsight, with all available returns plotted, would repetitively lining up for a possible emergency landing look deeply deceptive.’

    So, I don’t think the pijacker had a deep understanding of BTO and BFO however I do think he understood the fuel useage of his own plane sufficiently to have played us all.

  2. TBill says:

    @Victor
    @Richard
    I welcome the new study. The “cat’s got my tongue” because I am less knowledgable re: drift models. Right now I tend to agree we need to check 20-25 South before going wide.

  3. Niels says:

    @Richard Godfrey
    Important and interesting work. While I’m still studying, a first question:
    You include a significant amount of drogued drifter data in your dataset. Griffin et al. showed that submerged items floating near the surface drift much alike undrogued drifters. There must be a clear difference in drift behaviour between drogued and undrogued drifters, as the latter category is much more susceptible to (direct) wind and wave effects. How do you account for the difference?

  4. Barry Carlson says:

    @Niels wrote:- “Griffin et al. showed that submerged items floating near the surface drift much alike undrogued drifters.

    That’s because such items are effectively “floating” i.e. their volume is still larger than the weight of the water they are displacing. Therefore, they are still subject to surface effects, though less in respect of wind, but to Stokes drift as per other floating objects.

  5. Annette Mansfield says:

    Well if the debris had taken such a direct path from the crash site as Richard Godfrey’s latest drift study suggests, there would have been thousands of bits of MH370 washing up on the other side of the SIO, since most of it would go in the same direction, hardly anything washed up on the other side of the SIO. No one will find any trace of MH370 searching further north, or even any where else on that 7th arc. Why not go back to the start, with the arcs which after the startup would have to be in the wrong place, with the search in the SIO which was in the right place before it was suddenly moved on March 27th 2014, and with where most of the debris actually went, because most of it never went any where near that 7th arc. What little amount of debris did cross the 7th arc, would have crossed in multiple places, as it was already spread out, before it crossed the arc. Back tracing debris to that 7th arc is not going to lead to the MH370 wreckage site, which is south, way south and not on that 7th arc.

  6. Victor Iannello says:

    Annette Mansfield asked: Why not go back to the start

    In order to accept your search area as valid, we’d have to dismiss the satellite data, the radar data, the drift models, and the fuel consumption models. That’s not likely to happen.

  7. DennisW says:

    @Victor

    …and the absence of debris in Western Australia. IMO, that is the “deal killer” relative to terminal locations farther South. Note I used farther instead of further. Ami would be pleased.

  8. ventus45 says:

    @DennisW
    “deal killer” ?
    So far as I am aware, none of the drift models showed any significant probability of debris washing up on the coast of Western Australia, regardless of start position on the arc, all the way down to 40S.

    http://www.marine.csiro.au/~griffin/MH370/OM_af_MH370_IO_tp3sl15ds_splash3932/OM_af_MH370_IO_tp3sl15ds_splash39322014.fli

    http://www.marine.csiro.au/~griffin/MH370/OM_af_MH370_IO_tp3sl15ds_splash3932/OM_af_MH370_IO_tp3sl15ds_splash39322015.fli

  9. DennisW says:

    @Ventus

    I am not in the mode for arguing, but what I said has a strong historical basis. I am not going to dig out a bunch of references to prove my point.

    http://www.duncansteel.com/archives/2631

  10. Richard Godfrey says:

    @Niels

    I discuss drogued and undrogued GDP Drifter Buoys on page 9 of the study. I do not find a significant difference in the drift speed between drogued and undrogued GDP Drifter Buoys from the historical data sets provided by GDP across a population of 96 buoys.

    Of the 96 GDP Drifter Buoys used in this study, 78 were drogued and 18 were undrogued. A drifter buoy that lost its drogue at its end point was classified as drogued. The average speed of all 96 GDP Drifter Buoys was 0.535 knots, whereas the average speed of the 18 undrogued buoys was 0.522 knots. The average speed of the undrogued buoys is 97.6% of the full set of buoys.

  11. Richard Godfrey says:

    @Julie Judice aka @Nihonmama

    It is a shame that you obviously have not even read my paper, before commenting in Twitter:

    https://twitter.com/nihonmama/status/1020392950432292864

    For your information, Erik van Sebille has never published a paper on MH370. According to his CV, he has published 84 articles, given over 30 presentations and 60 seminars, but not a single one on the subject of MH370. What you are quoting is an opinion expressed in an interview for media. If I were to include a table of opinions in the paper, it would extend to over 1000 pages!

    Alec Duncan is also not the author of a drift analysis. He has investigated hydro-acoustic signals received and concluded they are not from MH370.

    Meteo France and GEOMAR are both included in my paper. However, GEOMAR has two favoured start latitudes on the 7th Arc at 15°S and 25°S, whereas I show there is a hard cut of at 18°S for all start latitudes between 18°S and 10°S.

  12. Niels says:

    @Richard Godfrey
    Did you check for possible differences in drift direction between drogued and undrogued? I would expect that undrogued drifters travel slightly more in the direction of the wind, while drogued drifters tend to follow surface currents. Surface current direction can significantly deviate from wind direction even under steady wind conditions and considering wind induced currents only, see for example:

    https://en.m.wikipedia.org/wiki/Ekman_transport

  13. Victor Iannello says:

    @Richard Godfrey: Not fully understanding the facts has never stopped her from making false accusations on Twitter.

  14. Richard Godfrey says:

    @Niels

    You are correct that there is not only a slight difference in the speed between drogued and undrogued drifter buoys, there is also a slight difference in drift direction.

    From 20.5°S on the 7th Arc, I show a track based on my mix of drogued and undrogued drifter data with an overall bearing towards Reunion of 277.2266°T ending up 699 km north of Reunion.

    From 20.5°S on the 7th Arc, using only drogued drifter data the overall bearing towards Reunion is 274.5383°T (2.7° less) ending up 453 km north of Reunion.

    From 20.5°S on the 7th Arc, using only undrogued drifter data the overall bearing towards Reunion is 279.4107°T (2.2° more) ending up 903 km north of Reunion.

    Over a distance of 5,059 km, these small differences add up.

    All of the above data does not account for windage of the Flaperon. When you factor in the windage, the speed and direction will change again.

  15. mash says:

    re: Probability 100 – Bayesian Inference

    Suppose there are two acts during the flight, namely:
    Act A – reactivate SATCOM
    Act B – isolate IFE

    And both Act A and Act B can be either Good or Bad, so there are 4 combinations:
    [Good – survival purposes; Bad – murder purposes.]

    Cat 1 – Good A, Good B
    Cat 2 – Bad A, Bad B
    Cat 3 – Good A, Bad B
    Cat 4 – Bad A, Good B

    But Cat 3 and Cat 4 are somwhat inconsistent and therefore could plausibly be ruled out.

    Now although one can find reasons for Bad A, it is perhaps rather difficult for Bad B – in the sense that Good B could be a very significant event for survival but is insignificant otherwise.

    Therefore, once Bad B is ruled out, the only conclusion is that Cat 1 is the most likely event.

    [In short, high probability of Good B (due to motive asymmetry) implies high probability of Good A and Good B (due to intention consistency).]

  16. Victor Iannello says:

    @mash: There is no evidence that the IFE was inhibited at 18:25. In fact, there was a normal IFE log-on during the 18:25 log-on sequence.

  17. DrB says:

    @Richard Godfrey,

    Please check the shaded band in the figure for African Mainland in Victor’s article on your drift study. It seems to be near +/- 150 days, not 50 days.

  18. Richard Godfrey says:

    @DrB

    I think what Victor depicts is the range of MH370 floating debris with known arrival times arriving on mainland Africa from 655 days – 50 days to 835 + 50 days.

  19. Victor Iannello says:

    @DrB, @Richard Godfrey: Yes, Richard is correct. The text accompanying the chart says: Also shown by the shaded area is the range of times corresponding to the actual arrival of the engine cowling fragment and the outboard flap, again bounded by +/- 50 days.

  20. DennisW says:

    @Victor

    I had the same question as DrB, but I understand now. As a nitpick your choice of shading could be a bit stronger.

    @Richard

    I did work through the paper. Nicely done. I really like your time arrival versus latitude graphics.

  21. DennisW says:

    @Victor

    I take back what I said about shading. It is fine on my Mac (which I fired up for an unrelated reason). On a Chromebook it is difficult to pick up. I love the Chromebook, BTW. It is the future of computing IMO.

  22. Richard Godfrey says:

    @Dennis

    Thanks for working through the paper and your kind comments.

    As you can see from the arrival graphs, either some items of MH370 floating debris arrived quite some time before being discovered or they were caught up in gyres farther away and experienced a further adventure.

  23. Niels says:

    @Richard Godfrey
    I’m trying to understand your methodology. Is it correct that you used the “mixed” (drogued + undrogued) dataset to represent the drift of submerged (low windage) debris, and the mixed dataset + windage effect for the flaperon?

  24. David says:

    @Victor, Richard Godfrey. Prof Pattiaratchi disagrees:

    https://www.airlineratings.com/news/new-mh370-study-suggests-north/

  25. DennisW says:

    @David

    I put Pattiaratchi’s comments in the “what else would he say category”. I have much more confidence in Richard. The use of “Mr” Iannello in the article instead of “Dr.” Iannello could be regarded as a small oversight, but it still pisses me off.

  26. mash says:

    @Victor Iannello

    No, I mean the second (last) logon. There are other reasons for the missing IFE part but the most likely (high probability) reason is that it has been isolated – thus still supporting the above “Bayesian Inference” argument …

  27. Victor Iannello says:

    @mash: No, I’d say the most likely reason for the missing IFE log-on at 00:19 is either the APU ran out of fuel or the aircraft crashed.

  28. Victor Iannello says:

    @Richard Godfrey, @DennisW, @David: It is not surprising that Chari Pattiaratchi and likely David Griffin disagree with a search area as far north as Richard recommends. And I agree that the CSIRO and UWA models do incorporate more accurate data at higher resolution. However, what Chari and David G do not address is why the plane could have flown so far from the 7th arc as they now propose to search.

    If the opportunity to search again presents itself, I don’t believe it will be easy to decide whether to search wider or further north. I’m still in the undecided camp, and I am willing to consider arguments for either approach, although I will say that at this point I am leaning towards searching further north.

  29. Richard Godfrey says:

    @David, @Dennis, @Victor,

    Prof. Charitha Pattiaratchi also fails to explain why the drift studies from Meteo France and GEOMAR disagree with his findings, but align with my findings. He doesn’t even agree with his Australian colleagues at CSIRO on the most probable MH370 End Point.

    “UWA Professor Charitha Pattiaratchi said last year that its reverse drift modelling put the location of MH370 “at Longitude 96.5 E Latitude 32.5 S with a 40km radius”.” – The West Australian – 23rd January 2018.

    His favoured MH370 End Point within a 40 km radius of 32.5°S 96.5°E has been searched out to 23 NM from the 7th Arc by Ocean Infinity. How he justifies searching out to 52 NM from the 7th Arc, especially when the ATSB say the flaps were not extended, I do not know.

    After searching 332,000 square kilometres without success, I would regard the ability to determine the MH370 End Point to within a 100 km grid as a helpful starting point for a new search.

  30. Richard Godfrey says:

    @Niels

    You ask “Is it correct that you used the “mixed” (drogued + undrogued) dataset to represent the drift of submerged (low windage) debris, and the mixed dataset + windage effect for the flaperon?” Yes.

    The software application that I wrote can interrogate various datasets (mixed, drogued only, undrogued only, with gyres, without gyres, with windage and without windage).

    Here is a link to an Excel with all the data from the various simulation runs:

    https://www.dropbox.com/s/ujx3vxrz08klevt/7th%20Arc%20Drift%20Analysis%20-%20Richard%20Godfrey.xlsx?dl=0

  31. mash says:

    @Victor Iannello

    You have to consider not only those two “most likely” events happened, but also happening at the right moment.

    For example, let’s say the events will happen in 10 minutes, either one of them happening in the second minute has 1 – (0.9 * 0.9) = 19% chance only …

  32. Victor Iannello says:

    https://changingtimes.media/2018/07/20/malaysia-says-full-mh370-investigation-report-will-be-released-on-july-30/

    American amateur investigator Blaine Alan Gibson, who has found numerous pieces of plane debris, has been urging the Malaysian authorities not to release a “final” report at this time.

    A report, he says, cannot be final until the plane is found and the truth is known.

    Gibson says there needs to be a full report about personal effects that were found on Riake and Antsiraka beaches in Madagascar.

    “Many pieces of debris that have been confirmed to be ‘almost certainly’ or ‘highly likely’ to be from MH370 were discovered on those beaches,” Gibson said.

    “We need to see the report on the investigation into these personal effects by the Royal Malaysian Police.

    “Also, the investigators must collect the two remaining pieces of debris discovered in Madagascar, whose collection was prevented by the tragic assassination of the Malaysian consul there almost a year ago.”

    Gibson also says the Malaysian government should make public the raw military radar data from the night of MH370’s disappearance so that independent experts can analyse it.

    He says he hopes that the Malaysian government and Ocean Infinity will decide to resume the underwater search in the southern Indian Ocean when the weather in the area permits, possibly in November.

  33. DennisW says:

    @VictorI

    American amateur investigator Blaine Alan Gibson

    I prefer the use of the term “unpaid professional” rather than “amateur”. Likewise with volunteer activities such as fire and EMS. Unpaid service providers are not amateurs. It is a demeaning description, IMO.

    I am also convinced Malaysia is closing the book on MH370. It is hard to argue with that decision given the uncertainties associated with additional underwater searching.

  34. Victor Iannello says:

    @mash: Sorry, but I don’t understand what you mean. I stated that the absence of the IFE log-on at 00:19 was likely due to either the APU running out of fuel or the plane crashing, i.e., the missing IFE log-on was caused by one of the other two events. Those are not independent events.

  35. Victor Iannello says:

    @DennisW said: I am also convinced Malaysia is closing the book on MH370.

    Perhaps, but this investigation has been on life support for years now. I think we’ll know more by mid-November of this year whether there is a realistic chance of re-starting the search. I don’t think that Ocean Infinity has lost all interest.

  36. Niels says:

    @Richard Godfrey
    Many thanks for the clarifications and sharing the Excel file.
    As your “mixed” data set contains more data from the “drogued” category, I’m worried that the windage effects for the “non-flaperon” parts you consider in your analysis are not fully taken into account. Griffin et al. concluded that these parts would have an effective windage factor close to that of undrogued drifters (8/12/2016 report p. 9). The effective windage factor (dominated by Stokes drift) was estimated around 1.2% (same report p. 11) for undrogued drifters, in de direction of the wind.
    If indeed your “mixed” data set is dominated by the drogued drifter data I would expect a northerly bias in your estimates for possible crash locations (due to both speed and direction effects). Difficult for me to estimate by how much.
    Perhaps this can be repaired by introducing a windage factor for the “non-flaperon” items as well, however this would need a good understanding of the behavior of drogued drifters. Currently, for example, I find it difficult to understand the small difference in average speed between drogued and undrogued drifters which you have found in your data set.

  37. Victor Iannello says:

    @Niels: The engine cowling fragment (“Roy”) found in Mossel Bay, South Africa, is interesting because it was the first part found after the flaperon, yet it is also took the longest path. It also would float fairly flat on the water, and therefore would have small windage. The starting latitudes proposed by CSIRO and the UWA really don’t explain the timing of finding this part. Although there is a limit to what drift information we can draw from one part, it would also be an error to ignore it.

  38. mash says:

    @Victor Iannello

    According to “FI MAS”, the first logon created four logs:
    non-IFE part at 1825:27 and 1825:34
    IFE part at 1827:03 and 1828:05
    (about 90 seconds between the above two parts)

    whereas the second logon create only two logs:
    non-IFE part at 0019:29 and 0019:37
    IFE part: None

    That means the second logon interruption, whether due to crash or APU failure, must be happening between those two parts; that is, within that 90 seconds after 0019:37.

    But the chance of the interruption happening in that 90 seconds is proportionally low; that is, why not an earlier, or a later, interruption time – considered as a probability experiment?

  39. Victor Iannello says:

    @mash: We believe the last BFO value indicated a descent rate of 14,000 fpm and a downward acceleration of 0.67g. It would be no surprise if the plane crashed within a couple of minutes after that and produced no IFE log-on.

  40. Richard Godfrey says:

    @Niels

    For the Southern Indian Ocean, there are 204 undrogued buoys in the GDP Drifter dataset, launched after 1st January 2000, which lasted longer than 100 days at sea and where the drogue was lost between the launch date and a date 10% into the journey time. In other words, these 204 drifters were between 90% and 100% undrogued.

    It will take a bit of time, but I will build a database with these 204 undrogued buoys and rerun the floating debris simulation software for key latitudes between 10°S and 40°S. We will then be able to better see the difference between data derived from drogued and undrogued drifter buoys.

  41. Gysbreght says:

    Victor Iannello says “@mash: We believe the last BFO value indicated a descent rate of 14,000 fpm and a downward acceleration of 0.67g.”

    The last BFO value indicates the descent rate. The acceleration at that time could have been downward or upward. we don’t know the value.

  42. Dan Richter says:

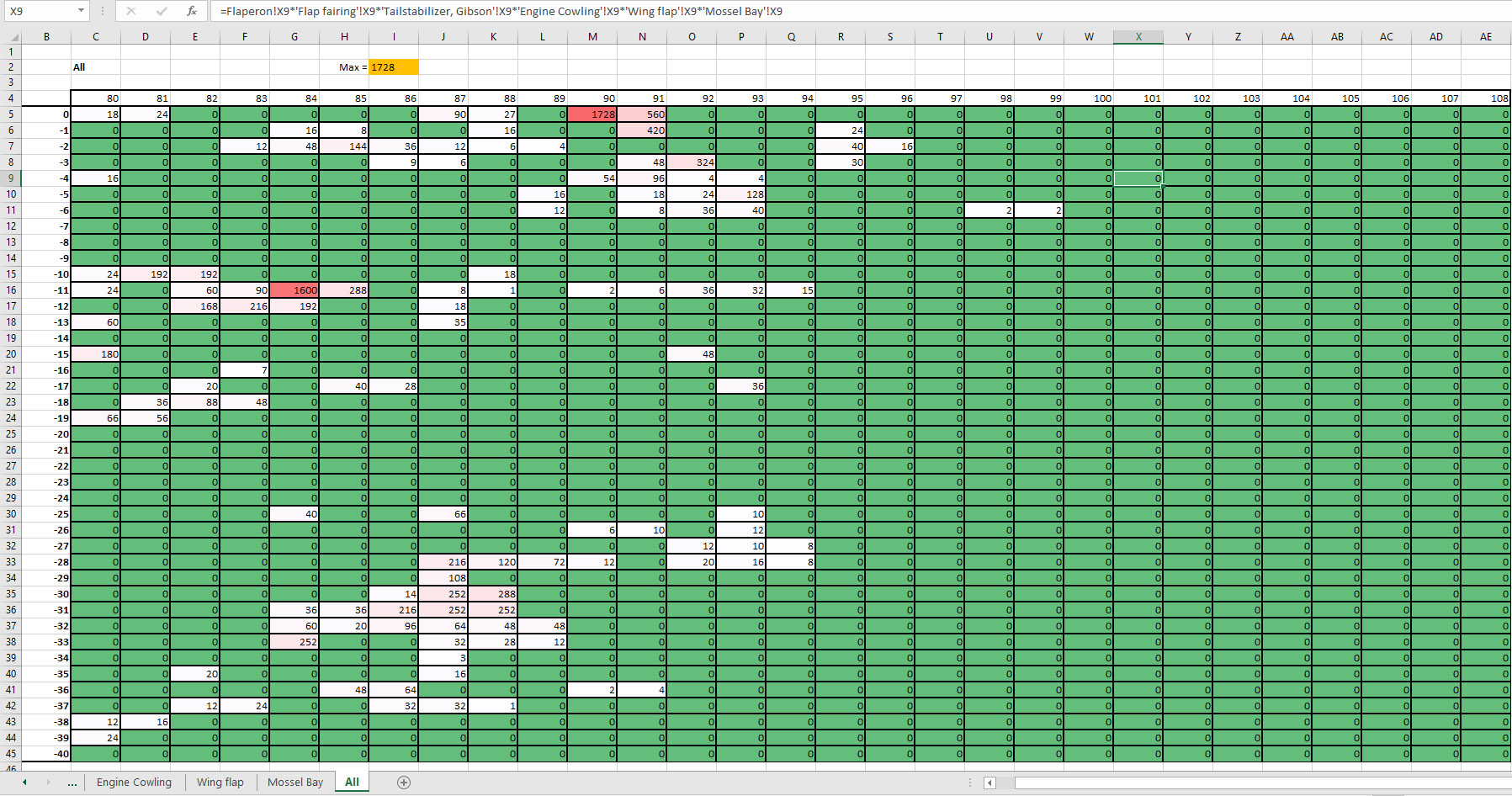

    Heat map shows how many NOAA buoys originated in SIO from the LAT LON 1°x1° for: Flaperon; Flap fairing, Tailstabilizer, Engine cowling, Wing flap and Mossel Bay debris to their place of finding (rectangle area +- 1.5°). The final heat map is a result of multiplication of number find buoys in given SIO rectangle 1°x1° for each debris.

    https://www.2i.cz/images/2018/07/22/Heat_map_6_debris.jpg

    Excel source table here (use slow download)
    https://uploadfiles.io/k0ydi

  43. Mark Deuter says:

    On April 04, 2014, I notified the Australian Maritime Safety Authority of a hypothesis that had the aircraft crashing in exactly this zone. Aerometrex also published the hypothesis on its blog, see http://www.aerometrex.com.au/blog/?p=901 . AMSA apparently took the theory seriously and started moving MV Ocean Shield to this search area the next day. The Chinese Govt also commenced searching in this area.

    The hypothesis is based on an assumption of the aircraft’s ultimate destination coordinate, and includes consideration of some, not all, eyewitness accounts as well as fuel burn, the initial radar tracking and the Inmarsat satellite pings.

    Unfortunately all of the data I had was gleaned from newspaper reports so I had been content to let the issue rest with the authorities, who presumably had better source data. However nothing I have seen since has convinced me that my hypothesis has been disproved, in fact the latest independent studies seem to support the hypothesis.

  44. Victor Iannello says:

    @Gysbreght: The last two BFO values indicate an average downward acceleration of 0.67g over eight seconds, reaching a final value of 14,000 fpm. You know this.

  45. Gysbreght says:

    @Victor Iannello: Of course I know this. The aceleration is unlikely to have been constant during 8 seconds. I think it could easily change at the rate of 0.5 g per second in maneuvers, and hence could have varied greatly at the end of those eight seconds.

  46. Victor Iannello says:

    @Gysbreght: You are once again arguing for the sake of arguing. Yes, we all understand the difference between average and instantaneous values. Any way you slice it, if there is an 8-second period over which the average downward acceleration is 0.67g, the flight dynamics are very unstable, and barring pilot input, a crash likely occurred soon after. That was the context of my comment to @mash.

  47. Gysbreght says:

    @Victor Iannello: You assume that the downward acceleration occurred without pilot inputs.

  48. Victor Iannello says:

    @Gysbreght: Yes, a downward acceleration of 0.67g can be achieved without pilot inputs under some circumstances. As I said, “if there is an 8-second period over which the average downward acceleration is 0.67g, the flight dynamics are very unstable, and barring pilot input, a crash likely occurred soon after.” With pilot inputs after 19:41, the impact might have occurred farther than 100 NM from the arc, and over a large range of latitudes along the 7th arc, and it will be nearly impossible to define a manageable search area.

  49. DennisW says:

    @Victor/others

    I think the evidence of a rapid descent and an impact close to the 7th arc is strong. A pull out and glide is possible, but there is nothing to suggest that this maneuver occurred. For me, the rationale to search farther North greatly outweighs increasing the search width at latitudes already searched.

    The path towards the Cocos also makes sense relative to mindset (i.e. a possible last landing opportunity), and as a convenient LNAV weigh point. Implicit in my thinking is that ZS diverted the flight, there was no equipment failure, and suicide/murder were not the intended outcomes of the diversion.

  50. Victor Iannello says:

    @DennisW: I agree that this scenario seems to best fit the evidence we have today. Implicit in this scenario is that something occurred which prevented the landing on Cocos Island. However, without more evidence, it is difficult to assign any level of confidence. It’s possible that new evidence or new insights will surface that either support or refute this scenario.

  51. TBill says:

    @Gysbreght
    The way I look at it, we have a (1) best case end-flight scenario (near Arc7/fidnable) and (2) worst case scenario (very long “glide” from Arc7/unfindable). I am thinking it makes sense to rule out Case 1 by searching, after that not sure.

  52. Gysbreght says:

    @TBill: ” I am thinking it makes sense to rule out Case 1 by searching, after that not sure.”

    Agreed.

  53. Niels says:

    @Richard Godfrey
    “It will take a bit of time, but I will build a database with these 204 undrogued buoys and rerun the floating debris simulation software for key latitudes between 10°S and 40°S. We will then be able to better see the difference between data derived from drogued and undrogued drifter buoys”

    That’s much appreciated. It is important to find out, however, I understand it (again) requires a substantial effort.
    Meanwhile I will check literature for more info about the drifters / GDP.

  54. Niels says:

    @VictorI
    About the “Roy” part you wrote: ” It also would float fairly flat on the water, and therefore would have small windage”.
    In my (limited) understanding of the matter, one would still need to consider Stokes drift for such part. This is the major contributor to the effective 1.2% windage factor for undrogued drifters as described by Griffin et al.. This effective windage factor (multiplied by the wind velocity) has to be added to the surface current term that follows from an ocean model (V_5 in Griffin et al. 8/12/2016). My assumption is that this “V_5” corresponds approximately to what the drogued drifters will measure, as due to the depth of the drogue they will effectively experience very little Stokes drift. Perhaps this assumption is wrong, but then it would be important and interesting to understand why.

    Regarding the timing of the arrival of the “Roy” part, you state:
    “The starting latitudes proposed by CSIRO and the UWA really don’t explain the timing of finding this part”

    I would like to ask which model/calculation you used to arrive at this conclusion.

    Based on CSIRO’s calculation I tend to arrive at a different conclusion, see my earlier comment:
    https://mh370.radiantphysics.com/2018/06/08/an-mh370-flight-path-ending-further-north-on-7th-arc/#comment-16894

  55. Victor Iannello says:

    @Niels: I am basing my comment on the CSIRO models, and in particular the KMZ files that CSIRO provided. I posted an article on these results back in April 2017, and included a link to the KMZ files. Although a starting latitude of 30S comes closer to Mossel Bay than the 35S location favored by CSIRO, neither explains the timing particularly well. At the time, David Griffin wrote to me and said:

    You are correct that ‘Roy’ was found at an earlier date than the model predicted. But to be fair, the model error is ‘just’ 2 months. I consider Roy’s arrival time – before anything else upstream – to be something that is simply too hard for any present-day model to convincingly explain. You’ve seen the paths that things take. But those paths should not be interpreted too literally. Our Dec 2016 report mentions that we do not have confidence in the model’s ability to hindcast the arrival times of individual items along the African shore. That’s why we focussed on the more-robust things that the model tells us.

    The timing and location of the discovery of Roy remains unexplained, and it was essentially ignored by CSIRO and UWA in favor of other metrics.

  56. falken says:

    hi JeffW, CliffG, ScottO (X-posting as being banned there like “russian troll”)
    … it seems you transcended to discussion about jewish-bolsheviks; last time this was somewhat popular was back before/during WWII in NAZI(!) Germany …
    #shutdown #scientology

  57. mash says:

    Peter Foley of the Australian Transport Safety Bureau (circa May 22, 2018):
    [“We have quite a bit of data to tell us that the aircraft, if it was being controlled at the end, it wasn’t very successfully being controlled,” he added, according to Agence France-Presse.]

    Perhaps an even better theory is a partially controlled (controllable) glide, it meets the following requirements:
    1. search result (so far not in narrow corridor of searched arc).
    2. not too many, not too few debris beached.
    3. experts’ arguments about state of flaps, flapperons, etc.
    4. apparently no evacuation after glide.
    5. potentially (and hopefully) more or less intact plane.
    6. potentially shorter glide range for search purposes.

  58. Victor Iannello says:

    @falken: I’m not a fan of the mud-slinging that goes on at that site, and anti-Semitism is a turn for the worse. However, let’s not cross-post, as it only infects this site.

  59. Niels says:

    @VictorI
    It appears to me that David Griffin made his remark (“You are correct that ‘Roy’ was found at an earlier date than the model predicted.”), in the context of a discussion about the possible crash location in the S35 area. Indeed, looking at the KMZ files, the first particles arrive in the Mossel Bay area 2 – 3 months late.
    However, for S32 as assumed crash location (as indicated earlier by prof. Pattiaratchi), the first simulation particle passes Mossel Bay already in the first half of November 2015. So to say “The timing and location of the discovery of Roy remains unexplained, and it was essentially ignored by CSIRO and UWA in favor of other metrics”, imo is quite a strong statement and to me feels a bit unfair, at least in the direction of the UWA team.

  60. Joseph Coleman says:

    @Tbill

    Can you check your Twitter direct messages, would like to discuss something with you as regards MH370.
    Sorry about posting this Victor just wanted a chat with Bill.

    @All
    Does anyone have the co-ordinates at each time for the best path near straight and constant speed for the corrected BFO used in (hopefully ATSB used Ashton paper corrected BFO) from 19:41 to Bayesian central that ATSB used.

    Cheers

  61. Victor Iannello says:

    @Niels: When you consider how few parts have been discovered, and how few of the many particles in the CSIRO simulation pass anywhere near Mossel Bay in that time frame (never mind land on the shores), the discovery would seem to be a low probability event (but not impossible). That’s why David Griffin said he preferred to use other metrics, i.e., “the more-robust things that the model tells us”.

    Speaking of other metrics, there is a sharp disagreement between David G and Chari P about whether the absence of discovered debris on the shores of WA can be used as a discriminator of starting latitude. David uses this to help pinpoint the latitude. Chari says the offshore current prevents debris that approaches WA from washing up on the shores, and therefore the absence of debris provides no discrimination of latitude.

  62. Niels says:

    @VictorI
    “Chari says the offshore current prevents debris that approaches WA from washing up on the shores, and therefore the absence of debris provides no discrimination of latitude.”

    This is an important issue (I hoped that limiting the search to north of roughly S36 based on the absence of debris on WA coasts would be a point of agreement between different oceanographers)

    Would you know how specific prof. Pattiaratchi was when stating this (context / conditions)? It is hard to believe this would apply to all latitudes of WA coast, all seasons and all types of debris. WA coasts would be remarkably clean.

    Perhaps someone with local knowledge can provide some context / background?

  63. DennisW says:

    @Niels

    Pictures of WA beaches would suggest a ton of debris.

    https://www.theguardian.com/environment/ng-interactive/2018/apr/18/the-great-australian-garbage-map-75-of-beach-rubbish-made-of-plastic

    Hard to believe it all got there from beach-goers.

  64. Victor Iannello says:

    @Niels: I don’t know exactly what conditions Chari P would place on the statement about debris found on the shores of WA. What I do know is that David G in the CSIRO drift study says that:

    1) The July 2015 arrival date of the flaperon at La Reunion island is consistent with impact occurring between latitudes 40°S and 30.5°S.
    2) Arrival off Africa of other debris exclusively after December 2015 favours impact latitudes south of 32°S, as does the failure of the 40-day aerial search off Western Australia to find any floating debris.
    3) Absence of debris findings on Australian shores is only consistent with a few impact latitudes – the region near 35°S is the only one that is also consistent with other factors.

    Chari strongly disagrees with David about the validity of statement of (3).

  65. Niels says:

    @DennisW
    @Andrew

    Thank you for the links. A first quick read indicates that people dropping stuff at or near beaches is a major factor in the debris load. It gets redistributed by water and wind. Debris on WA beaches is a significant issue, at least near urban zones. One gets the impression that there is more debris leaving Australia into the ocean than the other way around.
    So far not much found about marine transport along WA coasts, however loads of references to check through the CSIRO links and documents.

  66. Don Thompson says:

    @Niels

    I have found these to be useful sources for information on ocean currents off the WA coast.

    The Leeuwin Current and its eddies: An introductory overview

    The Leeuwin Current – life of the West

  67. Niels says:

    @VictorI
    What I can remember from going through the CSIRO reports is that a crash location around S32 to me looked consistent with their simulation results. Perhaps the discrepancy between UWA and CSIRO drift study results is less than the different conclusions / search recommendations would suggest.

  68. Niels says:

    @Don Thompson
    Thank you, Don. This looks indeed very useful.

  69. Victor Iannello says:

    @Niels: Any theory that predicts an impact at those latitudes implies there was a glide away from the arc to a distance of 25+ NM, as OI seems quite confident that the detection probability was around 97%. That’s the part I can’t reconcile. And if it glided more than 25 NM, it could have glided more than 100 NM.

  70. DennisW says:

    @Victor

    And if it glided more than 25 NM, it could have glided more than 100 NM.

    Good point.

  71. mash says:

    re: A Drifting Dream

    Inmarset Analysis and Drift Analysis can be regarded as complementary tools. Say, Inmarset data to determine the starting point and Drift data to determine the shift. Like converting a 1-dimensional problem to 2-dimensional.
    Suppose the plane (simplified from sphere) is divided into small squares identified by coordinates (x, y):
    a. IA determines (probabilistically) a set of squares (a1, 0), (a2, 0), …
    b. DA shifts (probabilistically) the above squares to (a1 + c1, b1), (a2 + c2, b2), …
    subject to distance constraints sqrt(bi**2 + ci**2) < G1, G2, …
    In this way, one can search (non-linearly) the squares one by one according to priority (probability distribution).
    [perhaps one can even determine G = Expected(shifted direction/distance); of course, assuming both are good prediction tools.]

  72. Niels says:

    @VictorI
    If indeed the detection probability is what OI indicated (I can imagine it depends on the terrain), then a longer lateral displacement imo should be considered as serious option. I understand and agree that we cannot and should not ignore the final BFOs, so this needs additional analysis and discussion. Currently, I don’t know how we could approach this, as it needs detailed knowledge and perhaps even testing of the systems and algorithms involved. For example, I’m curious to understand if the frequency compensation would work as we assume, towards extreme attitudes or flight conditions.

  73. Victor Iannello says:

    @Niels: If we ignore the final BFOs, of the 10 Boeing simulations for the end-of-flight, the furthest point of impact from the 7th arc is about 14 NM (depending on the crossing angle between the plane’s track and the arc). If we accept the vertical speeds implied by the final BFOs, the impact point would be much closer to the 7th arc. A longer glide implies controlled flight after fuel exhaustion. If this occurred, a glide of about 120 NM could have occurred from a starting altitude of 40,000 ft. So if we want to conduct a search that includes the possibility of controlled flight after fuel exhaustion, how do you propose establishing the limits of the search width?

  74. Niels says:

    @VictorI
    I don’t think we should ignore the final BFOs. Also, I don’t think a long glide after a steep dive is a very plausible scenario. When I posted this morning I was thinking about alternative interpretation of the BFOs which would result in slightly farther impact point. However, there is also the lack of Satcom communication; is it correct it was expected about 1.5 minutes after 00:19:37?.

  75. Victor Iannello says:

    @Niels: @Don Thompson knows when the IFE log-on was expected. I think it was around 1.5 minutes after log-on acknowledge, as you stated.

    If you believe there were no pilot inputs at the end-of-flight, the impact should have been within around 14 NM from the 7th arc, independent of the interpretation of the final BFOs. I don’t see how an alternative interpretation of the BFOs will allow you to conclude the impact was further.

  76. TBill says:

    @Niels
    @Victor
    I hope Victor is correct (MH370 is close to Arc7), but I see possibility of longer glide than 120 nm if pilot wanted to conserve a some residual fuel, climb to FL400+, nose down and gain speed and ride the 70 knot winds with enignes on idle. Presumably IFE was switched off in this scenario.

  77. falken says:

    @VictorI
    hi Victor, sure, my apologies for that; one interesting(?) thing I experienced today was several minutes of “connection timeout” unavailability on BOTH of your blog sites from here – everything else working; I checked them today at 10:22 UTC and it prolonged for several minutes of unsuccessfull foced refreshes in Chrome and IE, but had no chance to try it elsewhere using different operators; it may be some glitch on hosting or internet, but it happened on BOTH, which IS weird (you probably have totally different hostings?)

    only few last words to NAZI issue though… as I am watching NatGeo primarily for air crach investigation documents (sawing ’em all probably already at least twice or more, since 2014) + also many WWII history documents, I noticed some narrative shifts in latest (NatGeoAU?) “nazi-megastructures-russias-war” series, where it all goes the way that (paraphrased) “”technologically, scientifically advanced nazi/wehrmacht almost tried to heroically save whole Europe or entire world from uneducated barbarian easterners, but it all failed only because of crazy fuhrer mistakes and brutally outnumbering of them by such russian barbarians”” (while most documents till now were quite balanced) – as someone who cant resist to notice VERY weird things (including the MH370 radio-silence and u-turn), this is something what is in line with all the wrong things at Ukraine/Maidan and everything what follows till now everywhere… I was trying to help to eliminate hard technical nonsenses (in my IT and embedded electronics domain) at Jeffs site since half of 2014, together with injecting discussion with “nazi-like scientology cult” warnings and some kind of “common sense” defense approach against Ukraine Right-Sector nazis danger etc, …as both these cases went in parallel somewhat at that time; my 2c of metadata … I swear, I will suspend myself again; to all here: keep working on the weird things…
    http://www.nationalgeographic.com.au/tv/nazi-megastructures-russias-war/

  78. Victor Iannello says:

    @TBill: I can’t say for sure the plane is close to the 7th arc. My point is that if you want to include the possibility of pilot inputs at the end-of-flight, you might have to extend the search area width to +/- 120 NM, especially if you ignore the final BFOs. If you exclude the possibility of pilot inputs, the impact should have been within +/- 22 NM of the 7th arc, and even closer if you trust the final BFOs.

  79. Victor Iannello says:

    @falken: I suspect that the jeffwise.net site is hosted by Network Solutions, as is this one. My guess is there was maintenance or some other issue which made both sites inaccessible for a period of time.

  80. Niels says:

    @VictorI
    I was thinking about wrong pilot input, for example resulting in a stall and spin. (I’m still a bit uncomfortable by the large change in BFO within 8 sec just being captured by the log-on sequence). Not sure however how/if this could result in larger than 14 NM displacement.

    Anyway, I think if the 1.5 minutes is correct then this is another indication that searching up to 20 NM from 7th arc would be sufficient: 1.5 min x 500 knots = 12.5 NM

  81. Victor Iannello says:

    @Niels: I think there are three plausible reasons for the absence of the expected IFE log-on around 00:21:

    1) The APU ran out of fuel, although there should have been fuel in the line to run longer.
    2) The IFE was turned off after the log-on at 18:28.
    3) The plane crashed before 00:21.

    I think the evidence lines up for (3), but we can’t be certain.

  82. Hank says:

    I recognize lots of familiar names from Jeff Wise blog. My first time here.

    The assumptions for the DTSG model were based on a ghost flight which effectively only allowed long straight flights to be considered in the heat map. They assumed infinite fuel with post correction of the distribution. This ignored that the flight endurance is a separate problem from the route/range problem. This resulted in a primary zone between 40S and 35S on arc 7. The IO search extended in Zone 4 to 26S.

    This did not consider an active pilot with a clear plan to complicate any future search for the aircraft. It makes sense to burn off all of the fuel to minimize any surface slick at impact. A near vertical entry from an uncontrolled terminal spiral dive might have been the preferred entry versus a glide even for a live pilot. I would expect this would minimize surface debris.

    A pilot (with no understanding of satcom pings) would not want to go to maximum range at maximum endurance. Simplifies the search. It makes sense to engage in one or more large circling turns. Each turn reduces the range by 100 to 150 miles. No need for extreme range – too predictable.

    DTSG never modeled a heat map with, for example, one randomly placed planned standard rate circle. Then two. These “suicide” patterns were never modeled. They only consider a ghost flight.

    It would not surprise me that an enroute 360 turn or two could move the impact up above 25S as the drift models suggest.

    Depending on where a 360 turn occurs it could have a significant impact on the probably routes between arcs. An arc to arc segment that was evaluated by the model as not probable because it would be too slow would instead be very feasible. And this impacts subsequent arc-to-arc probable paths.

    A suicidal pilot would not know about the arcs so the idea of turning 90 degrees after fuel exhaustion would serve no purpose for complicating a future search. This is only useful if the horizontal entry was better than a vertical entry for debris pattern. I think a pilot would want a near vertical entry. But I would want to break up the range and endurance simulations which is easily done by a few 360 turns.

  83. Victor Iannello says:

    @Hank: Welcome to the blog.

    We’ve been considering a holding pattern before 19:41 for some time now, which as you say, moves the impact point up the 7th arc. My last post considers a fully automated flight that ends near 22S latitude, and includes a holding pattern near Car Nicobar.

    Assuming that OI or somebody else wishes to re-start the search, the question becomes whether to search wider at previously searched latitudes, or to search farther north near the 7th arc. I’d say the jury is still out on that.

  84. Hank says:

    @Victor

    Thank you for the response. I read your 7/20 article and the 6/8 article before I submitted my comment. The discussion in the 6/8 article of possibility 1 is very reasonable and I have no reason to question it.

    In my possibility 2 scenario, I assumed that the turns are AFTER 19:41 and would directly impact the arc to arc probability model depending on the location of each turn. A 360 before 19:41 would burn fuel and reduce range but would not mess with the arc to arc routing.

    Inmarsat used a very different approach in March/April 2014 to define the zone for the air search (25S to 20S) than Neil Gordon’s particle filter model used to define the zone for the undersea search (> 25s). Nobody reconciled the two models and $200 million was spent only on the basis of the DTSG work. The drift analyses seem to support the original Inmarsat modelling.

  85. Victor Iannello says:

    @Hank: The DSTG model was based on automated flight after 18:02 with periodic inputs, with an a priori distribution for the number and interval spacing of those inputs. The DSTG model favored straight paths with typical cruise speeds and altitudes ending around 38S.

    On the other hand, the early flight path models (in April 2014) showed a turn at 18:27, paths over Banda Aceh, and slow, curving paths that fanned out based on ground speeds between 324 and 350 knots, and ending further north on the 7th arc (25S to 20S, as you say). We know the assumptions and rationale that were used in the DSTG analysis. We can glean from the ATSB’s final report some of the logic behind the path and speed assumptions used to construct the flight path models in April 2014.

    By 27 March 2014, following further analysis, the JIT had more confidence in MH370’s speeds derived by the primary radar data captured around Malaysia. The analysis indicated that the aircraft’s rate of fuel burn was higher during this segment of the flight than first thought and therefore its maximum range was decreased. The most probable track moved north to the S3 area and two new search areas designated S4 and S5 were defined (Figure 14). The corresponding drifted areas during this period of the surface search were areas A and B (Figure 15).

    We really don’t know what the JIT believed the higher speeds were, how much extra fuel was burned, and how they determined what the range of ground speeds to use in reconstructing the flight paths. It appears this work was not used by the DSTG when they reconstructed possible flight paths.

    On top of this, the BFO model was in a state of flux, as refinements were made to properly include the satellite frequency shift due to cooling during its eclipse. The preferred end point bounced around so much in this time period for various reasons that it’s not easy (for me, at least) to completely grasp the reason for each move.

  86. Victor Iannello says:

    @Hank said: The drift analyses seem to support the original Inmarsat modelling.

    Which drift modeling? If you look at Fig 26 in Richard Godfrey’s paper, various drift studies predict impact points between latitudes between 38S and 12S. Now granted, the assumptions that were used in each model, such as windage, vary greatly. However, a cynical view is that a drift study can be cited to justify just about any impact point in the SIO.

  87. Richard Godfrey says:

    @Victor

    You stated “However, a cynical view is that a drift study can be cited to justify just about any impact point in the SIO.”

    This statement is not just cynical, it is not true and misleading. It is logically impossible that all impact points along the 7th Arc are correct, let alone all impact points in the SIO.

    Fact is, that there are particular points along the 7th Arc that match a drift analysis and these have been subject of a number of drift analyses. My contention is that these drift analyses were all correct, but incomplete. It is easy, when you find one solution to a problem, that you do not look for a second solution or third or more. The impact latitudes near the 7th Arc of 34.5°S, 30.0°S, 25.5°S, 23.5°S and between 22.0°S and 20.5°S all fit one or more studies.

    The impact latitudes near the 7th Arc of 34.5°S, 30.0°S and 25.5°S have already been searched by Fugro or Ocean Infinity and can therefore be discounted to a 97% level of certainty.

    That leaves the area around the 7th Arc between 25.0°S and 20.0°S.

  88. TBill says:

    @Hank
    Philosophically, I am in total agreement with you that there could have been intentional maneuvers. Those of us in that category probably preferred the original June_2014 ATSB model (which apparently had some errors) but the good thing was it assumed all flight paths from Arc2 were possible, straight paths as well as paths with turns. That approach fell out of favor due to errors, but also because there is a strong (but possibly wrong) argument that the BTO/BFO data tend to suggest a straight passive flight.

  89. Victor Iannello says:

    @Richard Godfrey: When I said just about any impact point in the SIO, I was referring to impact points in the SIO along the 7th arc.

    I am deliberately playing devil’s advocate here. We can’t prove that a long, controlled glide did not occur. That leaves open a large range of latitudes, including latitudes already searched, but perhaps not sufficiently wide. As I said previously, I think the evidence lines up for an impact close to the 7th arc, which would suggest searching to the northeast of what was already searched. However, at this point, I can’t recommend this strategy with a high level of certainty. Perhaps new evidence will surface that will give us more certainty.

  90. Richard Godfrey says:

    @Victor

    Firstly the BFO at 00:19:37 UTC shows that the aircraft was descending at a very high rate around 14,000 fpm.

    Secondly the ATSB examined the Outboard Flap and state it was not extended at impact.

    How is this evidence compatible with a long glide requiring a steady descent and partial flaps?

    I have now completed my new drift database and the results shift the most likely MH370 End Point to closer to 22S.

    The devil does not always pay his advocates.

  91. Hank says:

    In the Inmarsat paper “The Search for MH370″ by Chris Aston, et al, in section 6 regarding flight paths it states:”Several different agencies worked on this issue in parallel, both independently and collaboratively. What we present here is a simplified flight path reconstruction technique to illustrate how the measurements may be transformed into a reasonable flight path. It should be emphasized that other members of the international investigation team developed far more sophisticated models factoring in aircraft and avionics performance characteristics to determine the final underwater search area.” This was a reference to the DTSG approach as documented in the book “Bayesian Methods in the Search for MH370.”

    Sophisticated does not mean more accurate. Neil Gordon was a globally recognized expert in the Particle Filter method in UK before he moved to Australia to join DTSG. So it is not surprising that this method was selected and no other parallel approaches were used. But the method is only as good as the assumptions and I found many of the flight dynamics assumptions to be highly questionable in chapters 6 and 7 and section 8.2 of their book.

    I did reach out at the time to both Chris Ashton and DTSG but only heard back from Ashton. While Aston didn’t say it, my take is that DTSG pushed this strongly and parallel approaches were not taken.

    They used simple first order Markov models for speed, altitude, and heading changes with maneuver frequency modeled from airline flights. With many thousands of random flights, the filter would converge on long straight airline flights. And they calibrated it against actual airline flights. No zebras. So if a pilot actually performed a 360 degree clearing turn on the actual flight, they explicitly didn’t allow turns beyond 180, and the Monte Carlo approach set the probability of that route to close to zero.

    So the entire search was based on a routine airline flight toward the south pole.

    The Inmarsat approach was based on point to point mapping between points on neighboring arc segments where some are clearly not feasible – too fast. A segment that might be too slow may have been dropped, but could represent a 360 and maybe should not have been dropped. But Inmarsat was working with actual data for the flight.

    I have not seen any reconciliation of the two methods. In the final ATSB report the Figure 18 based on Inmarsat work shows air search boxes between 25S and 20S. Very different than the DTSG map on Figure 57 of 40S to 34S.

    A major fault with DTSG in 8.3 assumption 4 of infinite fuel. They clearly do not appreciate that the flight endurance is a separate problem from the range/route problem. They only used the particle filter to deal with routes and used some form of post processing to consider the known endurance. Maybe the PF could not deal with two related, but separate, objectives.

    I think DTSG did a great academic exercise for one scenario. I do not understand how $200 million could have been spend on such questionable assumptions with no alternate methods used or even any reconciliation of alternate methods. I wonder about the people dynamics between Neil Gordon and others. Since it was Australian dollars, Inmarsat had no incentive to push hard – and they provided the support for the satellite data.

  92. Victor Iannello says:

    @Richard Godfrey: Even if we accept the validity of the final BFOs, a pilot could have gingerly pulled back on the control column and slowed, recovered altitude, and entered into a long glide. As for flaps, deploying flaps will actually reduce the length of the glide, as the (L/D) for the wing is reduced (although both lift and drag are increased). Flaps are not necessary for a long glide. The flaps will help if there was an attempt to ditch, which may or may not have occurred.

    I’m not advocating that a long glide after a rapid descent is what occurred, because my best guess is it did not. However, I am also not saying that a controlled long glide after a steep descent was impossible. I just view it as less likely than other possibilities.

  93. Niels says:

    @VictorI, Richard Godfrey
    Given the complexity of the situation with currently no obvious path forward there is strong need for more and more accurate data. This includes all available radar data, data about previous flights as used by DSTG for their BTO/BFO “statistics” but also detailed info on the detection probability as a function of latitude. Some key latitudes (31.0 – 33.0 and 35.0 – 36.0) contain difficult terrain and I don’t like at all to draw any conclusions from some indicative number (97%). Without this additional data, most of which we know it exists, I wonder if it is possible to come to a responsible search recommendation. I applaud the new flight path proposals and Richard’s interesting drift study, however it doesn’t change the uneasy feeling that we are considering options which half a year ago would fall in the low probability category.

  94. Victor Iannello says:

    @Niels: Yes, we all want more data. I also agree (if it is not already evident) that I am not yet ready to make a search recommendation. I also know that the subsea data is still under review. Perhaps when that review is completed, we’ll have a better idea of the detection probabilities. Maybe Malaysia will surprise us all and disclose new nuggets of information in the final report due to be released in several days.

  95. Richard Godfrey says:

    @Niels

    I have completed a database for the Southern Indian Ocean, with the 204 undrogued buoys in the GDP Drifter dataset, launched after 1st January 2000, which lasted longer than 100 days at sea and where the drogue was lost between the launch date and a date 10% into the journey time. In other words, these 204 drifters were on average 96% undrogued. The list of GDP Buoys can be found here:

    https://www.dropbox.com/s/m8r1eo9m64t9ifa/Metadata%20Undrogued.pdf?dl=0

    The coverage is much higher than the previous database used in the study featured in this post and comprises GDP Drifter tracks totalling over 3.2M km in length. The map of the coverage can be found here:

    https://www.dropbox.com/s/l6ovffdmogvxvzw/Coverage%20Map%20Speed%20Undrogued.png?dl=0

    The average speed of the 78 drogued GDP buoys used in the study was 0.540 knots, whereas the average speed of the 204 undrogued GDP buoys was 0.622, which is 15% faster. The average track of the 78 drogued GDP buoys was 280.2°T. The undrogued buoys vary their transoceanic track by around ±8° compared with the equivalent drogued buoy’s track. These are general results for the Southern Indian Ocean and I am currently writing up the particular paths of interest from the 7th Arc to Reunion, Madagascar and mainland Africa.

    I introduced the term efficiency in my paper, defined as the point to point distance between the start and end points of a buoy’s trajectory, compared with the actual distance travelled through the water between the start and end points. The average efficiency of the 78 drogued buoys was 26.1%, whereas the average efficiency of the 204 undrogued buoys was 11.6%. In other words, undrogued buoys get caught up in the winds and waves and can vary their track much more than drogued buoys and are less efficient getting across the Southern Indian Ocean.

    I am currently writing up the results comparing the simulation of MH370 floating debris tracks based on drogued and undrogued datasets from various start latitudes on the 7th Arc and will publish them in the next couple of days.

  96. Niels says:

    @Richard Godfrey
    That is important and impressive progress. I’m looking forward to seeing the consequences for the floating debris simulations. As said before, based on direction and speed effects one would expect the estimated points of origin to shift south when using undrogued drifters, however with the lower average efficiency you’ve found I’m less certain about the net effect.

  97. David says:

    @Richard Godfrey. There are some nice innovations in your drift study thanks (rate of advance ‘efficiency’ and the ‘go/no go’ gauges) though the tolerances of the gauges do imply a high confidence in the input data accuracy and interpretation.

    A specific. Earlier I have raised the likelihood that because the flaperon bore copious barnacles on the broken trailing edge (your fig. 4) that must have been mostly submerged en route and for some time, the barnacles being both large and small.

    There were concentrated colonies elsewhere and yet others were widely dispersed if sparsely. Tom Kenyon’s photos, including Exhibits 16 & 17, illustrate this:
    https://drive.google.com/file/d/0B461FEILFXxacDJwVTZxVVFIZHM/view

    Judging by their distribution the flaperon must have been almost completely submerged, presumably by water-logging. If so, given it would have more draft than ‘Roy’, the effect of surface water layer movement on drift should have been the lesser. With windage being little for both, flaperon movement might have been no faster – if not slower.

    Also, looking at your figure 19, the nil windage time for the flaperon would suggest an 18.7˚ starting latitude. At fig. 21, with no Reunion offset the start latitude would be 19˚ and fig.22 shows a ‘no windage’ fit with the required bearing at a 19˚start also.

    However were the flaperon representative of the average, 19˚ does fail the fig. 24 required spread ‘go/no go’ as it does the fig.25 split of tracks at Madagascar.

    So what I suggest is that the flaperon was without windage and its drift rate was like that of ‘Roy’ or slower; and also I raise the question as to whether its 19˚ start can be accommodated within the figs. 24 & 25 drift communities.

  98. Niels says:

    @Richard Godfrey
    Have you seen this page:
    http://www.aoml.noaa.gov/phod/gdp/mean_velocity.php

    It provides datasets which could be useful to cross-check your data, for example:

    “The second version (Matlab binary format / ASCII / NetCDF) contains monthly mean values of surface currents and SST. The variable names of the Matlab file are the same as above. The third index of matrix U, V, etc. corresponds to the month: 1=January, 2=February, etc. In the ASCII dataset, the first column is the month; the rest of the columns are the same as in the annual climatology file described above. ”

    If I understand correctly drifter “slip” (small for drogued and larger for undrogued drifters) has been removed. So, for drift studies of floating debris you would need to “reintroduce” slip into this data.

    I’ll try to find the pdf of Laurindo et al. 2017 as it could contain useful info on the different “slip” corrections.

  99. Niels says:

    @Richard Godfrey
    Another useful link: http://www.aoml.noaa.gov/phod/gdp/bib/bibliography_chronological.php

    (GDP bibliography). There is a downloadable publication list (“pdf version”)

    I’m searching for more info (papers) on drogued vs. undrogued drifters.

  100. mash says:

    re: Simple 1-dimensional flight path analysis

    Assumptions
    a. linear path (straight line from A to B, say)
    b. only forward or backward direction
    c. constant speed
    d. distance from A to B (100 miles, say), possible to arrive B in 7 hours (if all forward direction).
    e. 7 hourly direction detection check-points.

    Probability of detecting any backward movement:
    a. P(100% forward movement) = 0%; distance travelled = 100 miles
    b. P(95% forward, 5% backward) = 30%; distance = 90 miles
    c. P(90% forward, 10% backward) = 52%; distance = 80 miles
    d. P(85% forward, 15% backward) = 68%; distance = 70 miles

    [detection probability = 1 – forward ** 7]

  101. David says:

    @Victor. The principal information sources as to where the wreckage might lie have been satellite data and drift analysis. A potential third has been from infrasound, hydro-acoustic or seismic detection of aircraft noise, an explosion or a crash.

    However, investigation of hydro-acoustic possibilities met with no success. Some work was done also on whether infrasound recordings by Comprehensive Test Ban Treaty Organisation (CTBTO) sensors during the initial search phase for the aircraft might disclose detections but likewise without success, and there was a later study of Cocos Island recordings in particular, again with no useful result.

    The above work was able and willing but piecemeal and scientifically compartmented. For example, investigation of hydro-acoustic recordings from Diego Garcia did not extend to local infrasound recordings. Also so far as I can see there has been no search through Indian Ocean littoral seismic recordings, yet seismic sensors elsewhere have detected small explosions and aircraft crashes on land plus at least one at sea.

    Moreover there has been no research into a fundamental, which is whether the crash of MH370 into the Indian Ocean SHOULD have been detected, bearing in mind that the kinetic energy of the aircraft at 500 knots would be the equivalent of 1.3 tons of TNT. That is well above the energy behind some long range hydro-acoustic and seismic detections made hitherto.

    While detection depends on more than just energy there does seem to be an opportunity here to gather more data. It might be found that at a crash energy level X there would be a high probability of detection proximate to and right along a 7th arc’s length of interest. If on further scrutiny of the relevant recordings of all sensors no evidence of a recording were found, that would suggest the ‘crash’ was of low energy, ie it was a ditching of some sort. On the other hand were a detection disclosed, obviously that would benefit future searching greatly.

    I have posted severally about this on JW, where discussion about infrasound originated, much of that being encapsulated in the last two. These are now attached below in case of interest here.
    https://www.dropbox.com/s/0jzatm5zz5aku2k/Two%20posts%20on%20MH370%20detection%20by%20infrasound%2C%20hydro-acoustic%20and%20seismic%20sensors.%20docx.docx?dl=0

  102. David says:

    @Victor. Please delete my last paragraph. I see the timing is wrong. The rest stands. [VI: Done.]

  103. Victor Iannello says:

    @David: The infrasound work done that was pursued by LLNL could be interesting if continued. They found that the infrasound sensors could not detect takeoffs and landing at Cocos Airport. It would be interesting to use historical data to know if flyovers are detectable with high reliability. If so, and nothing was detected in timeframe of MH370, it would eliminate the path I proposed in the last post. If on the other hand, flyovers are not detectable, the path remains on the table (for now).

    Independent of infrasound detection, I wonder whether there are any recordings of audible ambient noise on Cocos Island in the time period of MH370. If an airliner flies over a sparsely populated island, it would be heard. Perhaps the audio was picked up by security cameras or other devices with a microphone. Admittedly that’s a long-shot.

    Increased scrutiny of seismic and hydroacoustic data from the CTBTO sensor network related to a crash is another avenue to pursue. I suspect what has been reported previously on gravity waves, as well as the seismic detections emanating from the South China Sea that were reported by the Chinese (and corrected by the US) used all of the relevant data. If we knew for sure that a high speed crash should have been detected but was not, that would be helpful information.

  104. TBill says:

    @Victor
    Re: 2018 Ryanair Emergency Depressurization Incident
    Over on Reddit MH370 (Air China thread) I have recently posted news reports from 2008 and 2012 detailing seemingly similar Ryanair loss-of-pressure incidents compared to the recent 2018 incident. We assume different aircraft but apparently all 737-800. Of these 3 incidents, the 2012 incident is only one we can find a cause report, and it was reportedly due to two faulty cabin pressure controllers, whereas one new pressure controller was installed improperly before the flight in an erroneous attempt to fix the problem.

    Before I jump to conclusions, it would be nice to learn the cause of the 2008 and 2018 incidents, because they look most similar re: ear injuries. OK I jump to conclusions anyways, and that is the implication that opening the outflow valves is very effective way to rapidly depressure aircraft.

  105. robert says:

    Hello Sir,

    I have a few questions I’d like to ask. The first question is about the data that has been used to calculate the ‘likely’ position. On average, what Indian ocean surface speed did you use for your models? And where did you get that information from? I mean, I don’t know for sure, but I believed I read something about the GDP. But I failed in finding the data on their webpage. My second question is about the ‘position’ of the aircraft. It’s position, I believe, is not in line with the data provided by Inmarsat. Do you believe they were wrong about the finding place after all?

    I appreciate your quick response.

    Robert

  106. TBill says:

    @Robert
    Briefly the Inmarsat data only tells us that the aircraft landed “near” Arc7, which extends from 40 South up to maybe about 10 South which is an arc of approx. 2,500-nautical miles.

    If you are referring to Inmarsat’s example flight path in their JON article, that was just one example (guess) of unfortunately an infinite number of equally valid flight path guesses that meet the requirements Inmarsat Arc rings. The aircraft speed for flight pass guesses ranges from high speed to low speed. When you propose a flight path, you know the distance between the Arcs and that sets the speed for your particular flight path proposal.

  107. David says:

    @Victor. Thanks for your response and the deletion. I will ask the Centre for Marine Science and Technology at Curtin University for any more background it might have though I will await tomorrow’s final report.

    Besides what might be in it the likes of Curtin might be freer to respond once this investigation is finalised.

    More generally it will be interesting to see whether those numerous businesses and organisations involved in the investigation and bound to confidentiality during it then feel they are released from that once it is concluded.

  108. mash says:

    I am still wondering why there was not a third satellite phone call after the first two unanswered calls. Presumably the first two calls indicated the plane was still intact (by deduction definitely not crashed, if not still flying), And if still flying, why not make a third call around fuel exhaustion time to check ‘new’ status?

    Assuming the second logon was completed successfully, any calls before the next/last unsuccessful handshake should be in the Inmarset log. So there could be, or could be not, a phone call after 09:15; but definitely not before that.

    Thus the first party to know the plane was still intact (if not flying) is the party that made that second call, not Inmarset a few days later. So why the apparent discrepancy between the search effort/area and the available ‘phone call’ information in the first few days? Perhaps one can deduce ‘something’ from these ‘strange’ acts.

    By the way, while the ([last] FI) report suggested the calls were terminated by the calling party, both terminated after exactly 2? minutes; perhaps this is just a system constraint, but perhaps not?

  109. TBill says:

    @mash
    MAS operations chief did say they presumed MH370 might still be in the air. He did not say why they made that assumption. So MAS made the 23:14 telcon just a few mninutes before the 23:24 MAS press statement announcing that Flight 370 is missing. Note that the planned arrival time in Beijing was earlier about 22:30. Presumably MAS did not have too much opportunity for quiet reflection of options at that hectic point.

  110. Richard Godfrey says:

    @Niels

    I have the initial results for 10 start latitudes on the 7th Arc between 18.0°S and 37.5°S. I have compared the previous results based mainly on data from 78 drogued buoys to the new results based on data from 204 undrogued buoys.

    In general undrogued buoys travelled 14% faster (at an average speed of 0.560 knots) than drogued buoys across the Southern Indian Ocean from their start point on the 7th Arc toward the north-south line through Reunion. There was one exception from a start latitude of 21.5°S, where there is only a very small difference in speed. The speed in knots from various start latitudes is shown in the link below:

    https://www.dropbox.com/s/gmuhnpxoaab9aaf/Drogued%20vs%20Undrogued%20Speed%20toward%20Reunion.png?dl=0

    This faster speed naturally results in earlier arrivals on the north-south line through Reunion. A wider range of start latitudes now show the MH370 Flaperon arriving before 508 days in the Reunion area and the timing of the arrival is not a helpful discriminator of start latitude. The number of days to the Reunion area from various start locations is shown in the link below:

    https://www.dropbox.com/s/3trlgjev99qcat8/Drogued%20vs%20Undrogued%20Days%20to%20Reunion.png?dl=0

    The bearing of undrogued buoys varies ±12° from the bearing of drogued buoys due to the influence of wind and waves. There is one exception for start latitudes south of 35.0°S. There is a very good match between the required bearing to Reunion and the actual bearing based on data from undrogued buoys for the start latitudes 21.5°S and 22.0°S. The variation of bearing between paths based on drogued and undrogued drifter data from various start latitudes is shown in the link below:

    https://www.dropbox.com/s/fm49k1w6pzx5rx5/Drogued%20vs%20Undrogued%20Bearing%20toward%20Reunion.png?dl=0

    The bearing obviously effects how far north or south of Reunion MH370 floating debris will pass. The average path over the Southern Indian Ocean to Reunion is 5,021 km and a track deviation due to windage of 2.5° left, would shift a track 219 km southwards. In other words, a track 219 km north of Reunion without windage, would hit Reunion with windage. The only fit to 219 km ± 60 km from Reunion is for start latitudes of 21.5°S and 22.0°S. The link below shows the distance (km) along the north-south line through St. Andre, Reunion for various start latitudes on the 7th Arc (north of Reunion is positive, south of Reunion is negative):

    https://www.dropbox.com/s/c21hpd1w95blk0e/Drogued%20vs%20Undrogued%20km%20North%20of%20Reunion.png?dl=0

    The timing to mainland Africa to arrive in 655 days shows a good fit to the start latitude of 22.5°S using the undrogued drifter data. The number of days to mainland Africa from various start locations is shown in the link below:

    https://www.dropbox.com/s/4xars6l8xn5izah/Drogued%20vs%20Undrogued%20Days%20to%20Africa.png?dl=0

    The simulated tracks of MH370 floating debris for start latitudes of 18.0°S and 21.0°S passed to the North of Madagascar to end up in Tanzania or Mozambique. The simulated tracks of MH370 floating debris for start latitudes between 21.5°S and 37.5°S passed to the South of Madagascar to end up in South Africa or Mozambique. The switch from going around Madagascar to the North and going around Madagascar to the South is for a start latitude between 21.0°S and 21.5°S based on undrogued data. The result based on drogued data was for a start latitude between 20.5°S and 21.0°S, so this cross over point has moved slightly southwards using undrogued data.

    With the benefit of hindsight, I conclude that the MH370 End Point must be near the 7th Arc between 20.0°S and 25.0°S, with a hot spot around 21.5°S.

  111. Niels says:

    @Richard Godfrey
    Many thanks for all these additional efforts. It is not only important in terms of results; it also helps us to get a feel for the complexity and possible error sources in drift modelling more in general.

    Before analysing and discussing the new results, first a question:
    What did you assume for effect of wind on flaperon in case of
    1. Drogued drifters data set?

    2. Undrogued drifters data set?

  112. mash says:

    @TBill
    http://youtu.be/fP0alYpP-Dk

    @12:27 (end of above youtube link) quote
    “We deeply regret that we have lost all contacts with flight MH370… ”

    Note:
    first call 1839:52 – 1840:56 (64 secs)
    2nd call 2313:58 – 2315:02 (64 secs again!)

    At least the 2324 MAS press statement was many hours after the first 1839 call …

  113. TBill says:

    @mash
    Thanks for the CNN link…I think I was watching CNN that night, and I was trying recall what they said and when. I think CNN coverage was very good up until the day about 2 weeks in, if I recall Richard Quest said CNN was not going to consider the pijacking theory for moral reasons. I would like to find that clip too. To me that was the day CNN deviated from searching for the truth.

    It is interesting MAS saying they had no idea where MH370 was, which at the time seemed so inadequate, now it seems very accurate.

  114. Richard Godfrey says:

    @Niels

    You asked “What did you assume for effect of wind on flaperon in case of the drogued and undrogued drifters’ data sets?”

    The initial results posted earlier today were without any compensation for windage.

    In the original study, with mainly drogued data, I assumed the windage for the Flaperon would get it to the Reunion area 53 days earlier. Applying the equivalent 60 days earlier to the undrogued results, gives you the following results:

    https://www.dropbox.com/s/ltnxehsdiewnsiq/Drogued%20vs%20Undrogued%20Days%20to%20Reunion%20with%20Windage.png?dl=0

  115. Niels says:

    @Richard Godfrey
    If I understand Griffin et al. correctly, for the “drogued” dataset you would need to add the 1.2% of 10m wind (downwind) + 10 cm/s left of wind. For the “undrogued” dataset you would possibly only need to add 10 cm/s left of wind, as the 1.2% of 10m wind effectively is incorporated in the “slip” of the undrogued drifters.
    As we now know, based on Laurindo 2017, the 1.2% is a crude estimate, as the Stokes drift most likely is not a simple function of local and momentary wind.

  116. Richard Godfrey says:

    @Niels

    My understanding is Griffin says that the Flaperon has a track with windage equivalent to an undrogued buoy plus 10 cm/sec plus 1.2% of wind and a bearing on average of 16 deg left of wind, but I stand to be corrected.
    Hi
    You have to work out the drift vector and the windage vector to obtain the track speed and bearing.

  117. Niels says:

    @Richard Godfrey
    An interesting check would to add 1.2% of 10m wind to the drogued data (and nothing to undrogued data) and then calculate days to African coast. This should give two similar lines when plotted as a function of starting latitude.

  118. Niels says:

    @Richard Godfrey
    For the flaperon: I will reread Griffin, I think it is in the 13 April 2017 report (part ii). See for example at the sides of fig. 3.2.

  119. Niels says:

    @Richard Godfrey
    Please check sections 2.3 and 3 from the 13 April 2017 CSIRO report. According to the caption of fig. 2.3.1., the total leeway is defined with respect to drogued drifters (which I think are assumed to represent the “current” near the surface). The 10 to 20 degree angle to the left of the wind is applied to the “extra” leeway velocity for the flaperon (see caption fig. 3.1), which I think refers to the constant 10 cm/s term. This is confirmed by the text at the right sides of the panels of fig. 3.2.

    It could all have been written down a bit more clearly..

    Perhaps it is wise to do a final verification with David Griffin?

  120. Victor Iannello says:

    @Niels: I agree with your interpretation. The drift of the drogued drifters represents the surface current. Modeling the undrogued drifters require an extra 1.2% windage (aligned with the wind) due to Stokes drift (wave action), which is consistent with floating objects with little leeway. To account for the extra leeway of the flaperon, in addition to the 1.2% (aligned) windage due to Stokes drift, it requires 10 cm/s at an angle to the left between 10 and 20 degrees. To account for the extra leeway of high windage objects like seat cushions, a value of 3% windage is used, i.e., 1.8% higher than low leeway objects.

  121. Nederland says:

    The French report on the flaperon concludes that it likely came off on impact with the water rather than through in-flight separation.

    http://mh370.mot.gov.my/Appendix-1.12A-2-Item1Flaperon(Main).pdf (English translation, p. 25-29)

    Although the latter can not firmly be excluded, it therefore looks like that MH370 did indeed try and ditch on the ocean.

  122. Richard Godfrey says:

    @Victor, @Niels,

    I stand corrected. Many thanks!

    So I stand by my previous comment that “With the benefit of hindsight, I conclude that the MH370 End Point must be near the 7th Arc between 20.0°S and 25.0°S, with a hot spot around 21.5°S.”

  123. Victor Iannello says:

    @All: I have skimmed the final report on MH370. My initial reactions are that it raises more questions than it answers, and there are some blaring inconsistencies. Although the likely cause of the disappearance is not explicitly stated, the wording in the report and the quotes from the investigator makes it clear that the Malaysians are trying to point people towards interference from a “third party”. For instance, lead investigator Kok Soo Chon says:

    “We are not of the opinion it could have been an event committed by the pilots,” he said, but added they were not ruling out any possibility since the in-air turn back was done manually and the systems in the plane were also manually turned off.

    “We cannot exclude that there was an unlawful interference by a third party,” Kok said.

    So who was this third party? How can they ignore that the captain had the best opportunity and capability to divert the plane? How does the timeline of the diversion fit any other possibility if the diversion was intentional? How can the captain’s simulator data be so casually dismissed as normal?

  124. Niels says:

    @Richard Godfrey, VictorI
    Good that we agree on the different windage terms; Victor, thank you for the clear summary.
    Before reaching (final) conclusions I think it is important to look at the whole picture. The following graphs imo would be helpful to form the picture (both in terms of results and to check methodology):
    a. Days to African coast from different latitudes; undrogued drifter data
    b. Days to African coast from different latitudes; drogued drifter data + 1.2% of 10 m wind (aligned with wind)
    c. Days to Reunion area from different latitudes; undrogued drifter data + 10 cm/s (left of wind)
    d. Days to Reunion area from different latitudes; drogued drifter data + 1.2% of 10 m wind (aligned with wind) + 10 cm/s (left of wind)
    A minimum (as I understand it all is a lot of work) would be to have c. in addition to a.

  125. TBill says:

    @Victor
    Re: Report
    I have suspected for quite some time from prior public comments that the report would try to say unknown 3rd party hijackers, and I have speculated out loud about that in prior posts, probably a year ago. I need to try to recall what prior public info gave me that inclination.

    @Nederland
    If you are correct (about ditching) that is obviously a big conclusion. Unfort it does not bode well for finding the aircraft.

  126. Victor Iannello says:

    @TBill: If the plane was in a controlled glide after fuel exhaustion, there is little hope of finding the plane in the near future.

  127. Nederland says:

    @TBill

    The conclusion about the ditching event is my own; but there is no other conclusion possible given the relatively good state of preservation of the flaperon. In a high speed impact, that thing would be shredded. The French analysis all but excludes the possibility it came off in flight because of flutter. They are confident it came off on impact. The only constraint would be that the plane came down apparently not in landing configuration as it ran out of power, and the other wing pieces suggest the flaps were not down. Taking into account also the final BFO transmission, it looks like the plane first descended steeply but was later recovered, presumably to avoid a debris field. This would somehow constrain the length it could have glided from the seventh arc.

  128. DennisW says:

    @Nederland

    Fixed link to English translation below:

    http://mh370.mot.gov.my/Appendix-1.12A-2-Item1Flaperon(Main).pdf

    The conclusion section (pages 25-29) seems to be critical of Boeing for not providing data. That is strange, but not unlike the French.

    It appears that Larry Vance was correct. The damage to the trailing edge was likely done by contact with the water. This is not the conclusion I was hoping for. An inflight separation would reinforce the conclusion of a high speed impact close to the 7th arc.

  129. DennisW says:

    @Nederland

    My link does not work either. I suspect it is a problem with the way this site handles URL’s. You have to copy/paste the link into your browser. The .pdf needs to be included in the link.

  130. Jerry M says:

    The analysis of the crash implications of the recovered parts has been sorely lacking to date. The French have finally provided something but the rest are still largely crickets other than pictures. Would be a useful endeavor to have all the parts in one room with crash experts and see what/if they would say about the nature of the damage and what it may mean about final flight.

  131. Gysbreght says:

    I disagree with that part of the flaperon conclusion which says that the flaperon must have been ‘extended’ at impact. I believe that impact of the airplane in a nose-up attitude could have caused the observed damage pattern.

  132. Richard Godfrey says:

    @Nederland

    Any pilot would know that if they wanted to successfully ditch, they need to do it before they run out of fuel. Without engine or APU power you cannot extend the flaps and you need a certain degree of flaps to ditch.

  133. Gysbreght says:

    Either way, the flaperon damage indicates human input at impact.

  134. Nederland says:

    @DennisW

    I think Larry Vance was partially correct. The flaperon came off on contact with water, but not in a high energy impact; however, none of the flaps were down to prepare for that ditching, and there was no power available anyway to bring the flaps down. If the BFOs are also understood correctly, then the first stage of the descent was either uncontrolled or akin to that. A bit like has been suggested by Simon Hardy in the 60 minutes documentary.

    Sounds vicious. I have no idea how to explain that particular end of flight scenario.

  135. Nederland says:

    There’s some suggestion in the report that Z. purchased ‘overseas’ painkillers (sedatives?), which might explain that seemingly crazy end of flight behaviour (and also the blurred but relaxed speech during radio transmission, like ‘Malaysian errr 3-7-0’ and the one repeated confirmation of altitude).

  136. Gysbreght says:

    @Jerry M: “The French have finally provided something …”

    I think it would be fair to say that the Malaysian authorities have finally released the French report.

  137. Richard Godfrey says:

    The latest Malaysian Report contains some interesting information about the barnacles found on the Flaperon. On page 1318 in the appendix they state “By extrapolation, the colonisation of the larger specimens (36 mm) on the flaperon dates back 476 days (Figure 6)“, the Flaperon was discovered after 508 days. Further details are that the sea water temperature at the start of growth of these larger specimens was 28.5°C ± 1°C and at the end of growth was 25.4°C ± 1°C.

    Bhupendra Patel also found that the optimum water temperature for barnacle reproduction and growth was between 19°C and 25°C. The rate of reproduction was slowest at 19°C and increased as the water temperature increased toward 25°C. There was a marked cut off in reproduction at water temperatures above 25°C.

    A link to his paper is:

    https://www.dropbox.com/s/3ppdirskklm8qcr/Patel.pdf?dl=0

    A sea temperature map of the Southern Indian Ocean shows that only a start latitude between 19.0°S and 23.0°S matches a track starting in sea water at 28.5°C ± 1°C and ending at Reunion in sea water at 25.4°C ± 1°C.

    A link to the sea temperature map is:

    https://www.dropbox.com/s/ces5q4u5kbrnhh9/Coverage%20Map%20Sea%20Temperature.png?dl=0

    Red is above 29.5°C and too hot, Dark Orange is 27.5°C to 29.5°C and good for the start of growth, Light Orange is 18.0°C to 27.5°C and good for continued growth, Yellow is below 18.0°C and too cold, White is no data.

  138. flatpack says:

    @Nederland

    Re the painkillers – see my post on the previous thread re a ‘fugue state’.

    https://mh370.radiantphysics.com/2018/06/08/an-mh370-flight-path-ending-further-north-on-7th-arc/#comment-16735

  139. flatpack says:

    @DennisW
    @Nederland

    ‘The flaperon came off on contact with water, but not in a high energy impact’

    It seems to read that way, which leaves me flummoxed as to why the emergency locator beacons did not work.

    Any ideas ?

  140. Nederland says:

    @flatpack

    According to this Guardian article, summarising the press conference, the ELTs could have malfunctioning an that airplane:

    https://www.theguardian.com/world/2018/jul/30/flight-mh370-report-unlawful-interference-by-third-party-not-ruled-out

    I have yet to read those sections of the report, however.

  141. Gerald says:

    @Richard: I’m completely buffled about the barnacles. Their conditions of growth and living are known for decades probably and now this report comes up with the idea that they lead to a probable crash side between 19 and 23 degrees. So start searching there.

  142. @Nederland,

    Nederland says:
    July 30, 2018 at 5:30 am
    The French report on the flaperon concludes that it likely came off on impact with the water rather than through in-flight separation.
    http://mh370.mot.gov.my/Appendix-1.12A-2-Item1Flaperon(Main).pdf
    (English translation, p. 25-29)

    I couldn’t open the above until I reduced it to http://mh370.mot.gov.my/,at which point I found myself on the Malaysian site, http://mh370.mot.gov.my/appendix.html.

    This lists eight Appendices, with links to others. If you click on APPENDIX, 1.12A-2, the French flaperon report duly shows up, but instead of a 4p translation, I found all 94 pages to be a “courtesy translation.” Interestingly most of them are marked, RESTRICTED CIRCULATION.

    Appendix 1-12A-1, also French, and marked HIGHLY CONFIDENTIAL, has 16p that are in English on and off. Mostly legal identification of flaperon material.

    2.6B is a 50p flaperon ‘DES VALVES’ REPORT entirely in French.
    2.6A is an 11p flaperon BARNACLE REPORT entirely in English.

    The rest are mostly older papers, and things of lesser interest.

  143. flatpack says:

    @Nederland

    Thanks!

    Also according to the Guardian article;

    ‘It (the safety report) also disproved theories that had suggested the pilot and first officer brought the plane down in a suicide mission’

    Mmmm, I shall have to look out for that falsification…

  144. Nederland says:

    @Neville

    You want to copy and paste the whole URL, including “pdf”, into your browser.

    Then go to p. 28 of the pdf (actually p. 25 of that report) and start reading on the bottom of the page.

    The most significant part is:

    “First of all, it appears possible to exclude in-flight loss of the flaperon since its weight is concentrated forwards, which would a priori lead to a fall with the leading edge forwards and the probable destruction of the latter. The damage to the trailing edge would also likely be different. A simulation of a flaperon fall with an initial speed corresponding to that of an aeroplane in flight would enable this to be definitively eliminated.”

    p. 29/26

  145. Richard Godfrey says:

    @Nederland

    You stated: “There’s some suggestion in the report that Z. purchased ‘overseas’ painkillers (sedatives?), which might explain that seemingly crazy end of flight behaviour (and also the blurred but relaxed speech during radio transmission, like ‘Malaysian errr 3-7-0’ and the one repeated confirmation of altitude).”

    I read the opposite in the report.

    The medical record showed that Z. occasionally took analgesics for his back pain, but there was no evidence of regular local or overseas purchases of over the counter pharmaceuticals.

  146. Nederland says:

    @Richard Godfrey

    I’m referring to pdf, p. 361:

    “Scrutiny of his credit card transactions failed to reveal a pattern of regular purchase of over-the-counter medication of any significance, either in local or overseas pharmacies. The possibility that such medication may have been purchased by cash cannot be excluded.

    The Team has further investigated the overseas over-the-counter prescriptions as there was no recorded transaction on the PIC’s credit card on any medications purchased.”

    My understanding is that he was prescribed pain medication for his back, but did not use his credit card to pay for this. He nevertheless used pain medication (not saying he regularly used any). The inference is that he normally purchased medication with cash, and that, therefore, the exact nature of the purchased medication is not known.

    If there is no relevance to this whatsoever then I find it doubtful that the report more than once mentions possible purchase of medication with cash.

    On p. 18 the report also mentions general issues with ” Flight crew medical and training records”.

  147. Joseph Coleman says:

    This is probably just a long shot, and I might be talking rubbish about the end of flight scenario but is there anything possible where a Squall updraft sometime after 00:1937 could make an airliner while in high descent as predicted go close to horizontal making it travel further from the 7th Arc?

  148. Paul Smithson says:

    page 4

    “At 1721:13 UTC [0121:13 MYT] the Military radar showed the radar return of MH370 turning right but shortly after, making a constant left turn to heading of 273° , flying parallel to Airway M765 to VKB (Kota Bharu)…

    Between 1724:57 UTC [0124; 57 MYT] to 1737:35 UTC [0137:35 MYT] the “blip” (a spot of light on a radar screen indicating the position of a detected aircraft) made heading changes that varied between 8° and 20° ,….

    At 1801:59 UTC [0201:59 MYT] the data showed the “blip” on a heading of 022° , speed of 492 kt and altitude at 4,800 ft. This is supported by the “blip” detected by Military radar in the area of Pulau Perak at altitude 4,800 ft at 1801:59 UTC [0201:59 MYT]. At 1803:09 UTC [0203:09 MYT] the “blip” disappeared, only to reappear at 1815:25 UTC [0215:25 MYT] until 1822:12 UTC [0222:12 MYT], about 195 nm from Butterworth, on a heading of 285°, speed of 516 kt and at an altitude of 29,500 ft.”

    What a mess.
    Heading 273 parallel to M765?
    Heading 022 at 1802?
    heading changes of 8-20 degrees – give us a clue, plus or minus, from what?
    It’s a shame that nobody bothered proof reading.

  149. Richard Godfrey says:

    @Nederland

    Again your supposition, not proven fact! Why be open about analgesics in your medical examination and hide overseas painkillers or sedatives with cash payments?

    Just like the Flaperon. The report says significant damage and you say hardly any damage. Your supposition is a soft ditching, not a proven fact.

  150. coubert says:

    “Any pilot would know that if they wanted to successfully ditch, they need to do it before they run out of fuel.”

    To avoid a fire at any price?

    Laymans question: how much aviate control was left after flame out?

  151. Nederland says:

    @Richard Godfrey

    I didn’t write “proven fact” but “some suggestion” in the above, concerning the question of painkillers/medication. I have yet to see evidence about disclosure of the use of analgesiscs in any medical examination (which date?)

    I didn’t write “soft ditching” in the above, in fact, I ruled that one out.

    Sure, there is “significant damage”, but the whole thing is still basically one piece. It is not shredded into very small pieces, which obviously would be the case in the event it crashed into the ocean in an uncontrolled (near supersonic) dive. This can be firmly ruled out. I didn’t say “hardly any damage” either.

  152. Richard Godfrey says:

    @Nederland

    Backpedaling a little bit?

  153. Nederland says:

    @Richard

    What I wrote is there for anyone to see.

  154. Victor Iannello says:

    @Coubert: To maximize the probability of a successful ditching, a pilot would want to minimize airspeed and vertical speed at the time of impact. Lowering the airspeed means increasing the lift characteristics of the wing, which is accomplished by lowering the flaps. However, lowering the flaps also increases the drag characteristics, which increases the downward vertical speed, i.e, the descent rate. The upshot is that a powered descent with flaps down is the best way to minimize airspeed and descent rate.

  155. Mick Gilbert says:

    @Nederland

    You say ‘My understanding is that he was prescribed pain medication for his back … ‘.

    The report appears to directly contradict that understanding. The report states, ‘In the course of the investigation, it was confirmed that the PIC sustained a spinal injury as a result of a paragliding accident in January 2007. He was medically certified to have recovered from the injury, and there is no record of him being on long term medication for this, or other medical ailments.’ (My bolding.)

  156. Richard Godfrey says:

    @Nederland

    What you wrote is:

    1. “The conclusion about the ditching event is my own;”

    2. “There’s some suggestion in the report that Z. purchased ‘overseas’ painkillers (sedatives?)”.

    I disagree with your conclusion and your suggestion.

    When you go on to say “but there is no other conclusion possible given the relatively good state of preservation of the flaperon.”

    The report states “The significant damage was appraised for the purpose of determining a scenario for separation of the part from the aeroplane.” Appendix 1-12A-2, Section 12, Conclusions, Page 29.

    “Significant damage” is not a “relatively good state of preservation” as you purport.

  157. Richard Godfrey says:

    @Nederland

    “He (PIC) was certified fit to fly in mid-2007 and went regularly for his six-monthly medical examinations for his continued licensure as a pilot. For his pain he was noted to have taken analgesics on an irregular basis. Based on available information, he was not on any regular long-term medication for any chronic medical illness.” Main Report – Section 1.5.9 – Page 36/37.

  158. flatpack says:

    @Richard Godfrey
    @Mick Gilbert

    “The Team noted that the medical records or reports of the flight crew
    obtained from the MAS Medical Centre facility did not include medical records or reports from other medical facilities. In fact, the Team has found a medical record of the PIC from another private medical centre which was not recorded in the MAS Medical Centre. The records from the MAS Medical Centre as well as the records from private clinics regularly visited by both the flight crew also seemed to be mainly records related to minor ailments such as coughs and colds and may not be reflective of the complete medical record of the individuals in question.”

    Main Report Page #359

  159. Nederland says:

    @Mick Gilbert

    It is true enough that any medication he took is not mentioned in the medical certificate. However, the FI already says that “For his pain
    he was noted to have taken analgesics on an irregular basis.” (pdf, 39).

    This means he was not on long term medication, but on medication on and off.

    My point was that the FR (final report) clearly states that he did not purchase any of these with his credit card. It is therefore implied that he did purchase medication with cash, and that therefore the nature of this medication is not known.

    If (!) this was pilot suicide – and I am not the only one who has ever said that this might be the case – then it is a reasonable assumption that some form of medication would help coping with the peculiar nature of that specific flight, including seven hours of flight after diversion.

    This could also explain why a) radio transcript section 4&5 appear blurred (Malaysian errrr 3-7-0, repeated cofirmation of altitude) b) the FO was pilot flying on his first flight without additional trainer.

    @Richard

    Is this a quote mining exercise?

    “relatively good state of preservation” in context is relative to the alternative assumption of an uncontrolled high-speed crash onto the ocean. It is simply impossible that the flaperon would be in the shape that it is know (i.e. still in one piece). There can be no doubt about this.

    The French analysis is similarly confident that the flaperon did not come off in flight (during an uncontrolled descent), at one point they use the words “definitely eliminated”.

    Pretty clear to me really.

    I wouldn’t call it a soft ditching. I agree with Victor that the purpose was hardly to achieve a “succesful ditching” given the unlikelihood that the aim of the end of flight was to survive, if indeed this was a suicide flight.

    Along with the ATSB conclusion that the flaps were not down, that leaves the only possibility that the aircraft was recovered and glided, but without proper landing configuration (after running out of fuel).

    One possible explanation I could imagine is that the pilot flying (whoever it was and whether or not they took medication to cope with the situation) recognised that there was one more satcom transmission and therefore went on to recover and glide rather than crash the plane, seeing that the satcom transmission might supply some data for future recovery efforts.

    @both

    What would be your alternative explanation of the French analysis. I’m curious to hear.

  160. Hank says:

    @Coubert

    The 777 has a Ram Air Turbine (RAT) which is a small windmill device that drops on a stalk from the side of the aircraft. This generates electric power for critical systems when the engines and APU are not operating. I think it deploys automatically, but I do not know for sure. This keeps critical flight instruments up and provides hydraulic power to certain of the primary flight control surfaces. But this does not provide power to operate the flaps.

    @victor

    “Successful” ditching would normally mean getting the aircraft down on the surface of the water with structure intact so that passengers could evacuate into rafts. Clearly a powered,full flap approach seems preferred for this.

    But to get a “clean” low speed entry under the water, it may be OK to get maximum range by descending at the best L/D for a clean 777 (250 or so knots). Then level into ground effect to slow down and then dump the nose into a wave. I don’t know the lowest speed in ground effect that a zero fuel 777 can achieve.

    What is the best way to submerge a 777 to minimize surface debris?

  161. Victor Iannello says:

    [Comments here are closed. Please continue the discussion under the new article.]
